GFEVT1500-A-74E 高速熔斷器100A-1200A 1500VDC

[附件: Download]

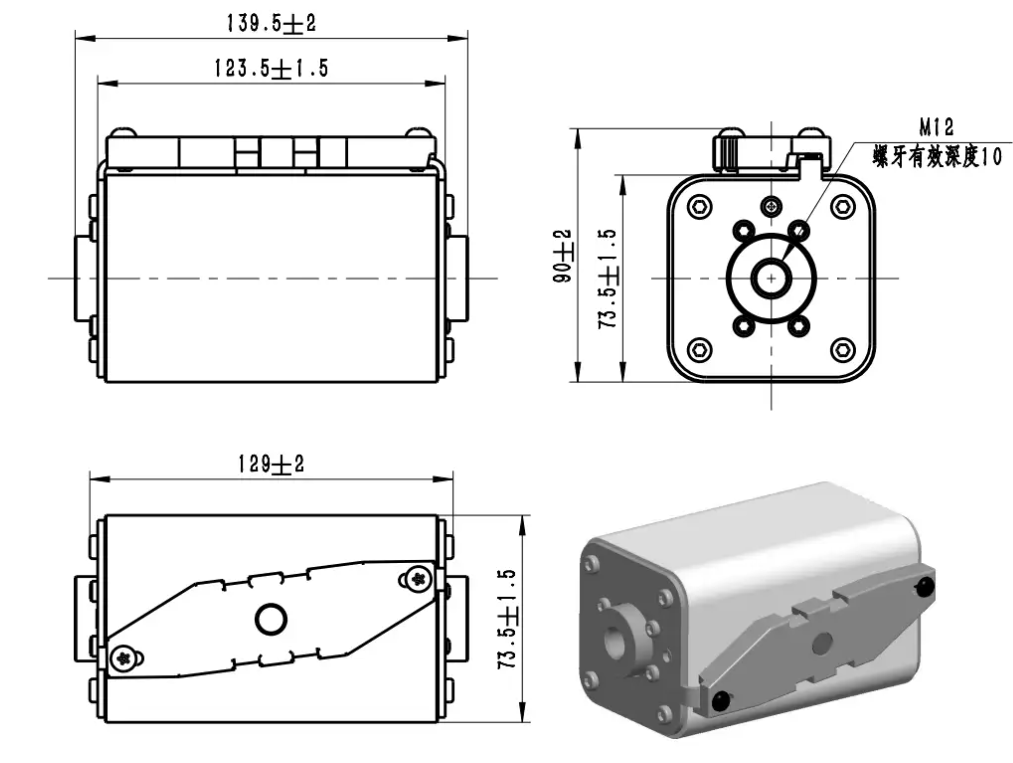

Dimensions (mm)

Description

Design For Dc Applications
Excellent Dc Performance
Superior cycling capability
Low Watt Losses

Standards / Approvals

Refer To UL 248.1/UL 248.13
IEC 60269.1/IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage. Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components. Greater ampacity within sizing guidelines, Excellent power of resisting voltaic impingement and environment temperature tolerance, Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Size	Average @250KA/1500Vdc		Power Loss (W)	Approvals
Connect	Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%
Flush-end contact	GFEVT1500-100A-74E	100A	3#	1,121	4,535	60	●	●
	GFEVT1500-125A-74E	125A	3#	1,706	8,091	68	●	●
	GFEVT1500-160A-74E	160A	3#	3,705	13,566	90	●	●
	GFEVT1500-200A-74E	200A	3#	5,070	22,772	110	●	●
	GFEVT1500-250A-74E	250A	3#	10,140	43,605	120	●	●
	GFEVT1500-315A-74E	315A	3#	20,604	73,644	136	●	●
	GFEVT1500-350A-74E	350A	3#	28,309	100,441	148	●	●
	GFEVT1500-400A-74E	400A	3#	37,320	130,559	171	●	●
	GFEVT1500-450A-74E	450A	3#	52,570	186,198	187	●	●
	GFEVT1500-500A-74E	500A	3#	71,128	250,479	204	●	●
	GFEVT1500-550A-74E	550A	3#	89,014	306,195	221	●	●
	GFEVT1500-630A-74E	630A	3#	125,840	422,594	248	●	●
	GFEVT1500-700A-74E	700A	3#	174,518	573,595	273	●	●
	GFEVT1500-800A-74E	800A	3#	271,019	863,105	294	●	●
	GFEVT1500-900A-74E	900A	3#	389,563	1,192,378	305	○	○
	GFEVT1500-1000A-74E	1000A	3#	523,585	1,549,528	362	○	○
	*GFEVT1500-1100A-74E	* 1100A	3#	719,385	2,056,080	385	○	○
	* GFEVT1500-1200A-74E	* 1200A	3#	973,208	2,682,900	391	○	○
