GFEVF500高速熔斷器（35A-800A)500VDC

[附件: Download]

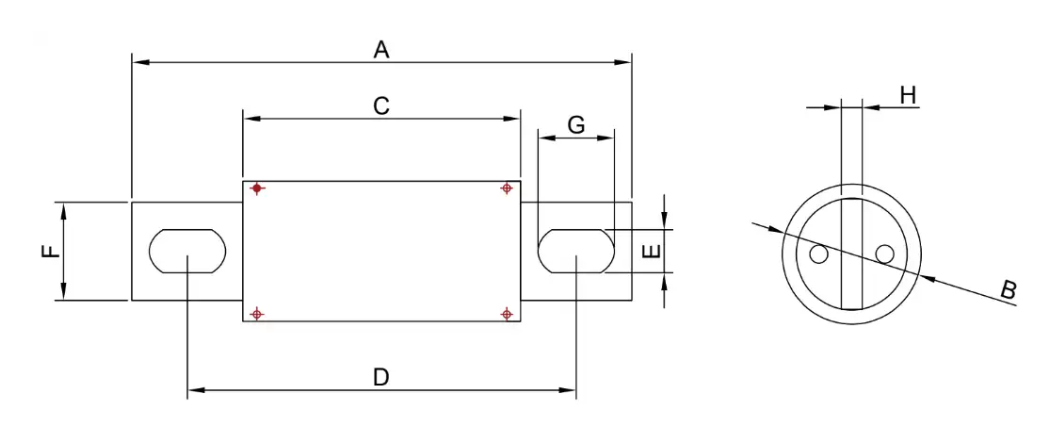

Dimensions (mm)

S.	Current	A±1.5	B±1	C±1	D±1.5	E±0.5	F±0.5	H±1	G±0.5
20R	35-60A	81	20	40	60.5	8.5	15	3	13
26R	70-150A	92	26	44	68.5	8.5	20	3	13
31R	125-250A	92	31	46	72.5	8.5	25	6	12.5
38R	225-450A	110	38	53	81.5	10.5	25	6	20
51R	450-800A	110	51	53	81.5	10.5	40	6	20

Description

Design For Dc Applications
Excellent Dc Performance
Low arc voltage and low energy let-through (I2t)
Superior cycling capability
Low Watt Losses

Standards / Approvals:

Refer To UL248.13 or IEC60269.4
Approvals: CE
RoHS Compliant

Features & Benefits:

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Can be applied in parallel to realize greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current		Catalog no.	Average @50KA/500Vdc		Power Loss W	Approvals
Rated Current		Catalog no.	Melting A2S	Clearing A2S	Power Loss W	ROHS
20 mm diameter case
35	35A	GFEVF500-35A-20R	49	509	8	●
40	40A	GFEVF500-40A-20R	111	1085	8	●
50	50A	GFEVF500-50A-20R	231	2624	10	●
60	60A	GFEVF500-60A-20R	305	3053	12	●
26 mm diameter case
70	70A	GFEVF500-70A-26R	392	2194	14	●
80	80A	GFEVF500-80A-26R	571	3413	16	●
90	90A	GFEVF500-90A-26R	673	3901	16	●
100	100A	GFEVF500-100A-26R	889	4876	20	●
125	125A	GFEVF500-125A-26R	1764	10051	25	●
150	150A	GFEVF500-150A-26R	2412	12075	28	●
31 mm diameter case
125	125A	GFEVF500-125A-31R	1498	6122	22	●
150	150A	GFEVF500-150A-31R	2059	8045	26	●
175	175A	GFEVF500-175A-31R	2714	10844	34	●
200	200A	GFEVF500-200A-31R	4050	14867	40	●
225	225A	GFEVF500-225A-31R	8650	33908	45	●
250	250A	GFEVF500-250A-31R	9094	51610	52	●
38 mm diameter case
225	225A	GFEVF500-225A-38R	5549	30873	42	●
250	250A	GFEVF500-250A-38R	7862	44372	48	●
275	275A	GFEVF500-275A-38R	9859	55533	54	●
300	300A	GFEVF500-300A-38R	12230	68624	58	●
325	325A	GFEVF500-325A-38R	17098	87916	60	●
350	350A	GFEVF500-350A-38R	18096	100456	65	●
400	400A	GFEVF500-400A-38R	23962	133253	70	●
450	450A	GFEVF500-450A-38R	33000	189670	78	●
51 mm diameter case
450	450A	GFEVF500-450A-51R	25688	134620	70	●
500	500A	GFEVF500-500A-51R	42515	205322	88	●
550	550A	GFEVF500-550A-51R	53450	249650	95	●
600	600A	GFEVF500-600A-51R	60133	283868	110	●
630	630A	GFEVF500-630A-51R	73815	319280	120	●
700	700A	GFEVF500-700A-51R	145880	515450	135	●
800	800A	GFEVF500-800A-51R	161840	565500	150	●
