GFEVT1000-36高速熔斷器(25A-250A)1000V


  • [附件: Download]
  • Volts: 1000Vdc
  • Amps: 25A-250A
  • Interrupting Capacity:
    • Max: 1000Vdc 50kA (or less)
    • Min: ≥ 3.0 In
  • Time Constant: ≤ 2±1 ms
  • Class Type: aR

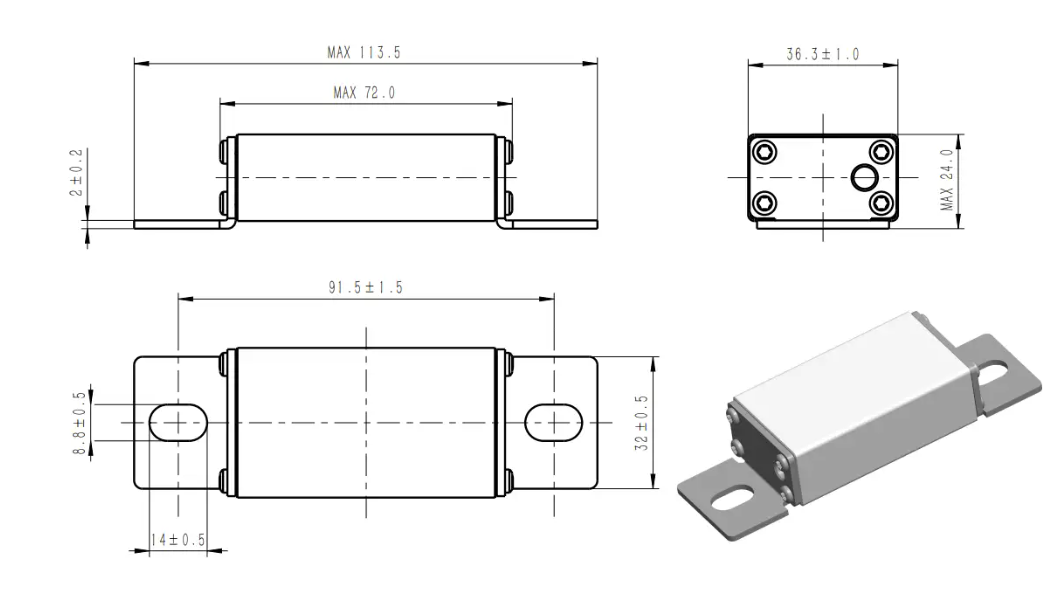

  • Dimensions (mm)



  • Description


    • Design For DC Applications
    • Excellent DC Performance
    • Superior cycling capability
    • Low Watt Losses

    Standards & Approvals

    • Refer to UL 248.1 / UL 248.13
    • IEC 60269.1 / IEC 60269.4
    • REACH Declaration Available Upon Request
    • RoHS Compliant

    Features & Benefits

    • Partial Range Protection:
      Designed specifically for partial range protection needs.
    • Low I2t:
      Offers low I2t values and strong current limiting capability.
    • High Breaking Capacity:
      Ensures reliable operation under high fault conditions.
    • Industrial Applications:
      Suitable for industries like rail transit, electric vehicles, and boats.
    • Versatile Backup Protection:
      Provides backup protection after short-circuiting for energy storage systems, power systems, conductors, and other equipment.

    Fuse Ratings

    Part No. Fuse Amps Breaking Capacity Average @50KA/1000Vdc Power Loss (W) Installation torque
    A2s Melting A2t Clearing 100%
    GFEVT1000-25A-36 25 50kA 21 105 8 11.0±1.0 N·m
    GFEVT1000-32A-36 32 50kA 38 185 10 11.0±1.0 N·m
    GFEVT1000-40A-36 40 50kA 68 325 12 11.0±1.0 N·m
    GFEVT1000-50A-36 50 50kA 155 745 16 11.0±1.0 N·m
    GFEVT1000-63A-36 63 50kA 305 1450 20 11.0±1.0 N·m
    GFEVT1000-80A-36 80 50kA 560 2480 22 11.0±1.0 N·m
    GFEVT1000-100A-36 100 50kA 960 4820 25 11.0±1.0 N·m
    GFEVT1000-125A-36 125 50kA 1640 8950 27 11.0±1.0 N·m
    GFEVT1000-160A-36 160 50kA 4100 18750 36 11.0±1.0 N·m
    GFEVT1000-200A-36 200 50kA 9560 39700 39 11.0±1.0 N·m
    GFEVT1000-225A-36 225 50kA 11780 54700 42 11.0±1.0 N·m
    GFEVT1000-250A-36 250 50kA 14500 70590 45 11.0±1.0 N·m
    *：If there are any requirements, please communicate with the original factory staff first.
    • DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃；
